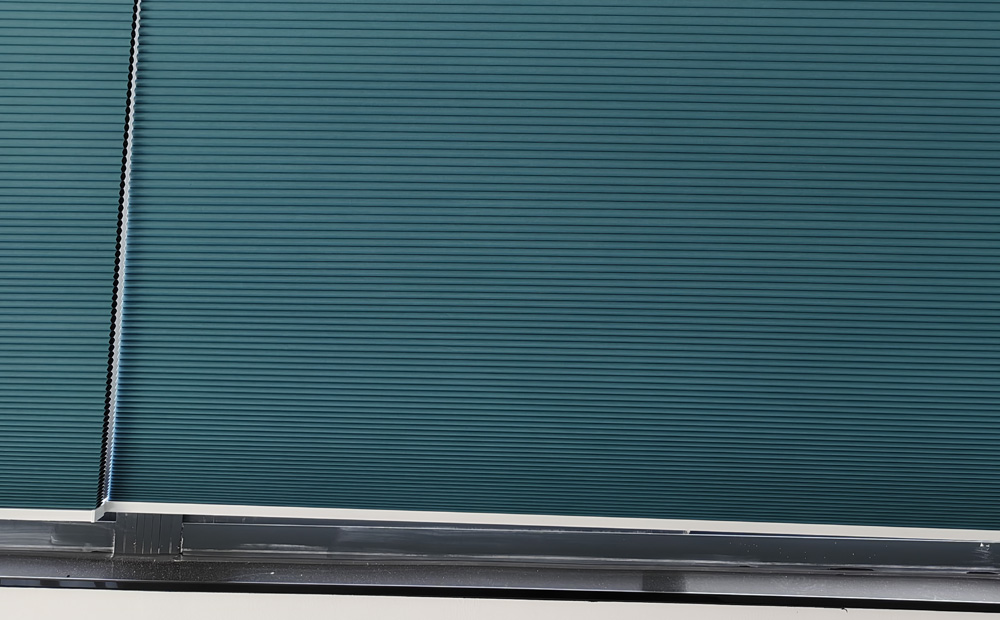

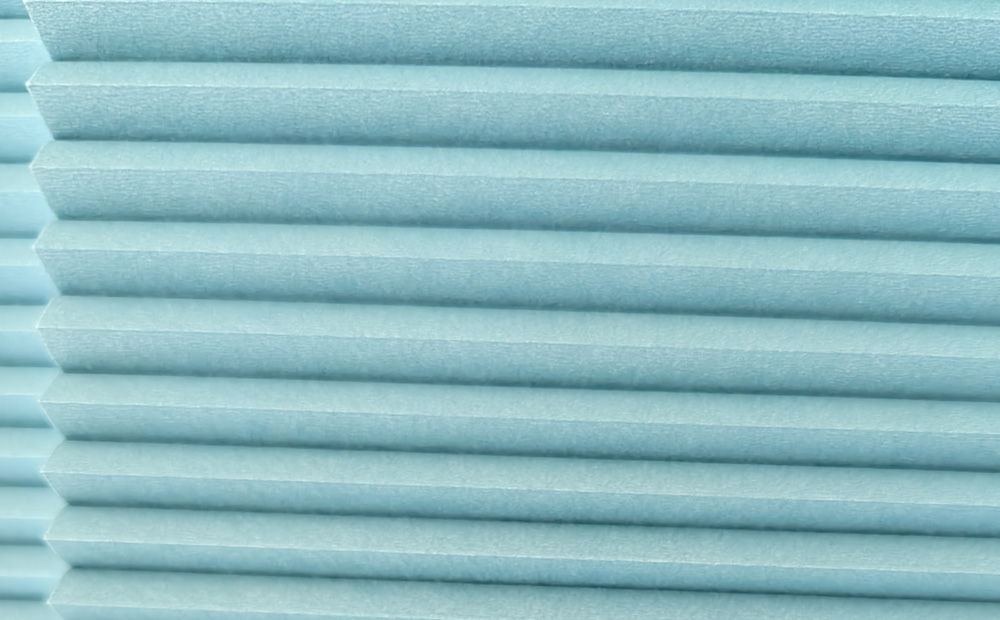

Honeycomb blinds made from nonwoven aluminum foil composite materials have become a popular choice in the high-end curtain market. The nonwoven layer provides texture and breathability, while the aluminum foil enhances insulation, soundproofing, and blackout performance. These products are widely used in luxury homes, hotels, office buildings, and sunrooms.

However, printing on this material is highly challenging. The smooth aluminum surface makes adhesion difficult, and real-world usage often involves strong sunlight and high temperatures, leading to ink fading, softening, or peeling. StarColor flexo water-based ink provides a targeted solution, enabling stable, high-quality printing on this demanding substrate.

Client Background

The client is a manufacturer specializing in premium honeycomb blinds, targeting mid-to-high-end markets in China and overseas (Europe and North America). Their products emphasize “thermal insulation + long-lasting aesthetics.”

Previously, they faced persistent printing issues: poor adhesion, fading under sunlight, and low heat resistance. These problems affected product quality and brand reputation—until switching to StarColor water-based flexo ink.

Key Challenges in Printing Nonwoven Aluminum Foil Blinds

1. Poor Adhesion on Composite Materials

The aluminum foil surface has low surface energy, making it difficult for conventional inks to adhere. This often results in peeling, scratching, and contamination during handling. Meanwhile, the nonwoven base absorbs ink unevenly, causing bleeding and inconsistent color output. Previously, defect rates reached up to 13%.

2. Leading to Fading

These blinds are frequently exposed to direct sunlight. UV radiation degrades standard pigments, causing fading and yellowing within 3–6 months. This led to high complaint and return rates (up to 10%), damaging the brand’s premium positioning.

3. Insufficient Heat Resistance

Aluminum conducts heat efficiently, and surface temperatures can reach 50–60°C under sunlight. Conventional inks soften above 45°C, leading to sticking, deformation, or transfer onto surrounding surfaces. Solvent-based alternatives offer better resistance but fail to meet environmental regulations.

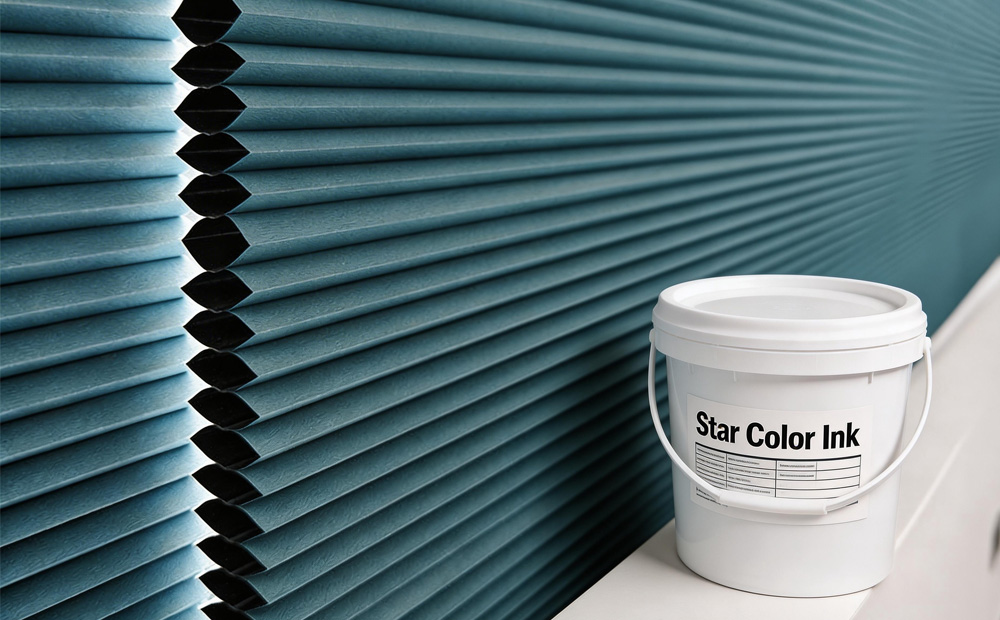

Solution: StarColor Flexo Water-Based Ink

1. Strong Adhesion & Material Compatibility

StarColor optimized its binder system using modified acrylic resins to ensure excellent adhesion on both aluminum foil and nonwoven substrates. The result is stable printing performance with clear dots and uniform color.

• Cross-cut adhesion test: <2% ink loss
• Defect rate reduced to below 2%
• Fast drying: surface dry in 5 minutes (25°C, 50% RH)

2. Superior Light Resistance

The ink uses high lightfast pigments combined with UV absorbers and stabilizers. It achieves a lightfastness rating above Grade 7 (Blue Wool Scale), ensuring long-term color stability.

• Xenon test (1200 hours ≈ 2.5 years outdoor exposure)
• ΔE < 1.2, color retention > 92%
• Complaint rate reduced to below 0.5%

3. Excellent Heat Resistance & Environmental Compliance

With heat-resistant modified resins, the ink withstands temperatures up to 85°C without softening or deformation. It remains stable even under prolonged sunlight or near heating systems.

• 60°C for 96 hours: no deformation or peeling
• 70°C exposure (10 days): no transfer or damage

As a water-based system, the ink is environmentally friendly:

• VOC ≤ 4%
• No benzene, ketones, or heavy metals
• Easy cleaning with water
• Compliant with international environmental standards

Results & Business Impact

After adopting StarColor water-based ink, the manufacturer achieved significant improvements:

• Product lifespan extended from 1–2 years to 4–6 years
• Production efficiency increased by 40%+
• Overall cost reduced by ~20%
• Order volume increased by 50%+

The enhanced durability, color stability, and environmental performance strengthened the company’s position in the premium market and supported expansion into international markets.

Conclusion

Printing on nonwoven aluminum foil honeycomb blinds requires a balance of strong adhesion, UV resistance, and heat stability. Conventional inks struggle to meet all these demands simultaneously.

StarColor flexo water-based ink solves these challenges through a tailored formulation, delivering long-lasting performance, environmental compliance, and premium visual quality. It has become a reliable solution for manufacturers aiming to upgrade product quality and compete in the high-end curtain market.
